View Account - Gateway Details - PM

This screen allows the user to add sub-accounts to their merchant portal.

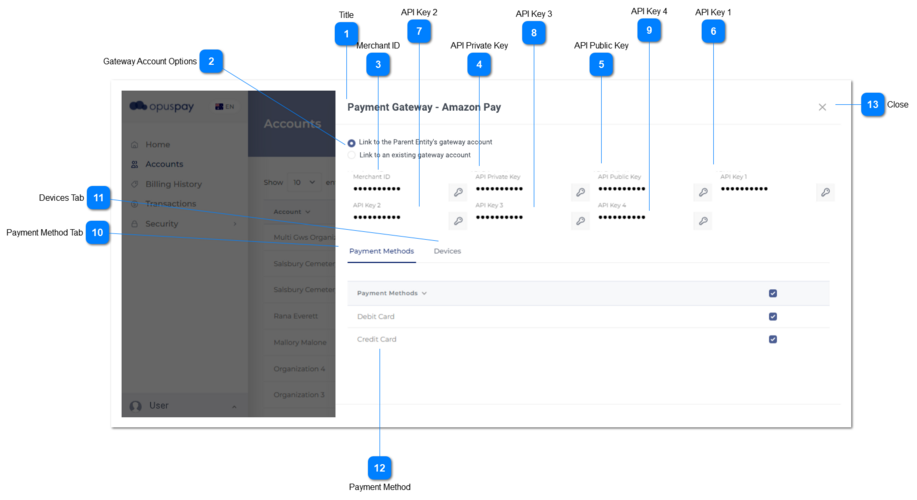

View Account - Gateway Details - PM

Title

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This displays the title of the screen. 1a. By default, the text 'Payment Gateway' should be shown followed by a hyphen and the name of the selected gateway. Eg. Payment Gateway - Payrix	Y	-	N	-	-	-

Gateway Account Options

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. These radio buttons determine if the Account is linked to the Parent Entity's Gateway account or if the Account will have it's own Gateway account. 2. If the "Link to the Parent Entity's Gateway account" option is selected, disable and autopopulate the Gateway, Merchant ID, API Private Key, and API Public Key. 2a. Display Merchant ID, API Private Key, API Public Key and all other keys as hidden. 2b. Display a key icon next to each field. The values should not be unhidden if this key icon is clicked. 3. If the "Link to an existing gateway account" option is selected, clear and enable the Gateway, Merchant ID, API Private Key, and API Public Key fields.	-	-	N	-	Link to Parent Entity's Gateway Account	-

Merchant ID

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This displays the Gateway Merchant ID for the account.	Y	-	N	255	Disabled.	-

API Private Key

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This displays the Gateway API Private Key for the account.	Y	-	N	255	Disabled.	-

API Public Key

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This displays the Gateway API Public Key for the account.	Y	-	N	255	Disabled.	-

API Key 1

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This displays the an additional API Key for the account.	Y	-	N	255	Disabled.	-

API Key 2

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This displays the an additional API Key for the account.	Y	-	N	255	Disabled.	-

API Key 3

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This displays the an additional API Key for the account.	Y	-	N	255	Disabled.	-

API Key 4

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This displays the an additional API Key for the account.	Y	-	N	255	Disabled.	-

Payment Method Tab

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Tab	-	1. This displays the Gateway's Payment Methods. 2. This tab should be highlighted to identify the tab the user is on	-	-	Y	-	-	-

Devices Tab

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Tab	-	1. This displays the Devices the Account uses. Refer to the specifications for that screen here.	-	-	Y	-	-	-

Payment Method

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Column	-	1. This will display the selected Payment Methods for the Gateway.	Y	-	N	-	-	-

Close

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Button	-	1. When clicked this should navigate the user to View Account - Gateway Details screen. Refer to the specification for that page here.	-	-	-	-	-	-
