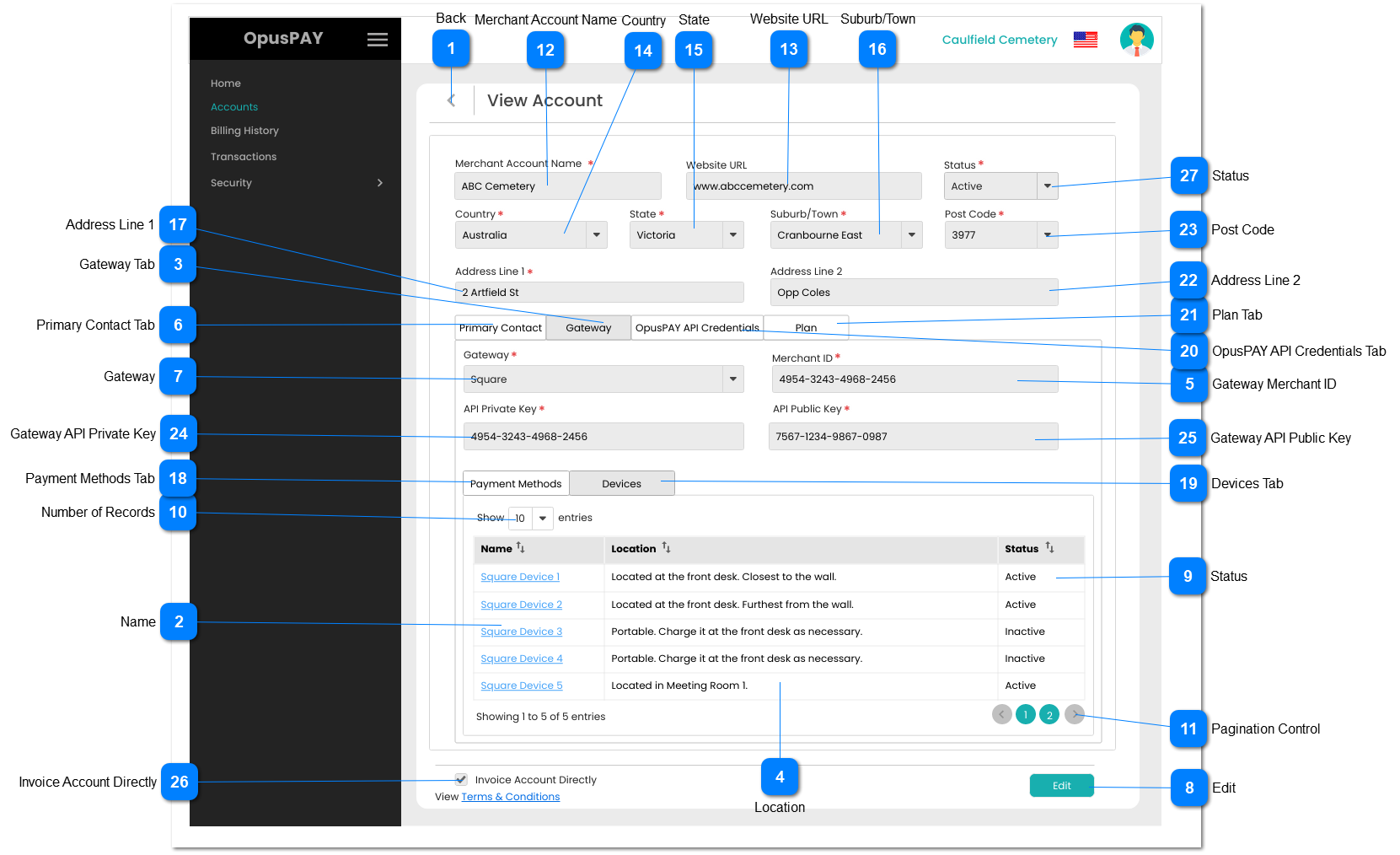

View Account - Gateway Details - Devices

This screen allows the user to add sub-accounts to their merchant portal.

View Account - Gateway Details - Devices

Back

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Button	-	1. When clicked this should navigate the user to the Accounts screen without saving any changes. Refer to the specification for that page here.	-	-	Y	-	-	-

Name

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Column	-	1. This will display the Device Names for the Account. 2. This should be sortable.	-	-	N	-	-	-

Gateway Tab

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Tab	-	1. This will display the Gateway details. 2. This tab should be highlighted to identify the tab the user is on.	-	-	Y	-	-	-

Location

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Column	-	1. This will display details as to the location of the device. 2. This should be sortable.	Y	-	N	-	-	-

Gateway Merchant ID

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This will display Gateway Merchant ID.	Y	-	N	255	-	-

Primary Contact Tab

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Tab	-	1. This displays the Primary Contact of the Account. Refer to the specifications for that screen here.	-	-	Y	-	-	-

Gateway

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Dropdown	-	1. This will display the current Gateway for the Account.	Y	-	N	-	-	-

Edit

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Button	-	1. Navigate the user to the Edit Account - Gateway Details - Devices screen. Refer to the specifications for that screen here.	-	-	-	-	-	-

Status

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Column	-	1. This will display the Status of the Device (active or inactive). 2. This should be sortable.	-	-	N	-	-	-

Number of Records

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Combo-Box	-	1. This should allow the user to select an option to control the number of device records visible in the grid. 2. Displays following options to select from: 10 25 50 100	-	-	Y	-	10	-

Pagination Control

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Button	-	1. This should allow the users to paginate through the Plans Grid records. 2. To determine the number of pagination buttons to display please follow the current logic that is being used in byondcloud.	-	-	Y	-	-	-

Merchant Account Name

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This should display the Merchant Account name.	Y	-	N	255	-	-

Website URL

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This should display the website of the organisation.	-	-	N	255	-	-

Country

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Combo-Box	-	1. This should display the account Country.	Y	-	N	255	-	-

State

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Combo-Box	-	1. This should display the State for the account.	Y	-	N	255	-	-

Suburb/Town

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Combo-Box	-	1. This should display the account Suburb/Town.	Y	-	N	255	-	-

Address Line 1

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This should display Address Line 1 for the organisation.	Y	-	N	255	-	-

Payment Methods Tab

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Tab	-	1. This displays the Gateway's Payment Methods. Refer to the specifications for that screen here.	-	-	Y	-	-	-

Devices Tab

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Tab	-	1. This displays the Devices the Account uses. The user can add and remove Devices here. 2. This tab should be highlighted to identify the tab the user is on	-	-	Y	-	-	-

OpusPAY API Credentials Tab

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Tab	-	1. This displays the Accounts API Credentials. Refer to the specifications for that screen here.	-	-	Y	-	-	-

Plan Tab

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Tab	-	1. This displays the Plan assigned to the Parent Entity. Refer to the specifications for that screen here.	-	-	Y	-	-	-

Address Line 2

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This should allow the user to enter the Address Line 2	-	-	Y	255	-	-

Post Code

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Combo-Box	-	1. This should display the Post Code for the account.	Y	-	N	255	-	-

Gateway API Private Key

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This should display the Gateway API Private Key for the account.	Y	-	N	255	-	-

Gateway API Public Key

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Text	-	1. This should display the Gateway API Public Key for the account.	Y	-	N	255	-	-

Invoice Account Directly

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Checkbox	-	1. If checked, indicate in the database that this account is to be invoiced directly for it's transactions.	N	-	N	-	-	-

Status

Type	Notes	Rules	Compulsory	Format	Edit	Size	Default	Error Message
Combo-Box	-	1. This should display the Status for the organisation.	Y	-	N	255	-	-
